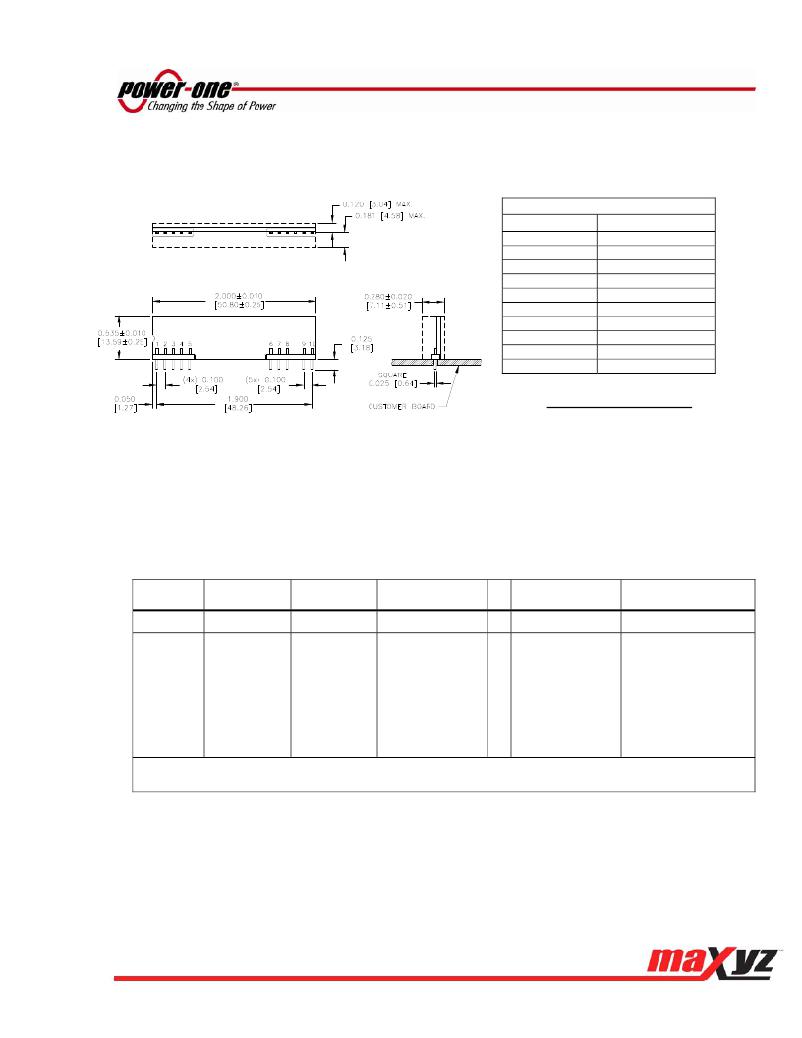

YNV05T10 DC-DC Converter Data Sheet
3.0-5.5 VDC Input; 0.7525-3.63 VDC Programmable @ 10A
Physical Information
TOP VIEW
Pad/Pin Connections
Pad/Pin #
1
2
3
Function
Vout
Vout
Vout SENSE
FRONT VIEW
SIDE VIEW
4
5
6
7
8
9
10
Vout
GND
GND
Vin
Vin
TRIM
ON/OFF
YNV05T10 Platform Notes
YNV05T10 Pinout
(Through-Hole - SIP)
?
?
?
?
?
?
?
All dimensions are in inches [mm]
Connector Material: Phosphor Bronze/
Brass Alloy 360
Connector Finish: Tin over Nickel
Converter Weight: 0.26 oz [7.28 g]
Converter Height: 0.545” Max.
Recommended Through Hole Via/Pad:
Min. 0.043” X 0.064” [1.09 x 1.63]
Product
Series
Input
Voltage
Mounting
Scheme
Rated Load
Current
Enable Logic
Environmental
YNV
05
T
10
–
0
0 ? Standard
No Suffix ? RoHS
Y-Series
3.0V – 5.5 V
T ?
Through-
Hole - SIP
16A
(0.7525V to
3.63V)
(Positive Logic)
D ? Opposite of
Standard
lead solder exemption
compliant
G ? RoHS compliant
(Negative Logic)
for all six substances
The example above describes P/N YNV05T10-0: 3.0V – 5.5 V input, thru-hole (SIP), 10 A at 0.7525 V to 3.63 V output, standard
enable logic, and RoHS lead solder exemption compliant. Please consult factory regarding availability of a specific version.
NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not designed, intended for use in, or authorized for use as critical
components in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written
consent of the respective divisional president of Power-One, Inc.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending
on the date manufactured. Specifications are subject to change without notice.
MCD10198 Rev. 1.0, 23-Jun-10
Page 26 of 26
www.power-one.com
